Small and medium fibre optic lighting starlight ceiling kits UK

Are they easy to install?

The small fibre optic star ceiling kit more often than not goes into a bedroom or a bathroom, this in most cases means the light source goes into the loft which makes for an easier installation, locating a place to put the fibre optic light source (light box) is the most important part of the job. For an easy explanation of installation just head back to the index page by clicking here.

A child's bedroom transformed into magical place.

The small fibre optic star ceiling lighting kit is the perfect way to transform a child’s bedroom or nursery into a magical place. This stunning kit uses fibre optics of different diameters to produce a "near and far" effect that complements bedrooms, bathrooms, showers, saunas, bed boards, floors and even fibre optic small star kit starlight's lights fabrics such as curtains. The Small Star Light Ceiling Kit features 112 points of light, is simple to install and very safe – no electricity or heat is emitted by the fibre optic tails which can easily be cut to size. The colour wheel/twinkle wheel can also be removed for white light only. Requiring little maintenance, 1 bulb lasts up to 3000 hours.

Examples of fibre optic star ceiling kits

office lighting
kids bedroom lit up with a fibre optic star ceiling kit
Free hanging fibre optic tails from bar, pub and restaurant ceilings
wooden panel lighting
strand harness and lightsource with UK plug
Purple starlights in a function room



Small fibre optic star ceiling lighting kit

Small fibre optic star ceiling kit

Small Fibre optic starlight's kit contents 35w tungsten halogen light source (181mm long, 100mm high, 105mm wide) with colour wheel/ twinkle wheel feeding 112 tail harness with a mix of 0.75mm and 1.0mm diameter polymer optic tails. Customised colour wheels available. This star ceiling light kit comes complete with acrylic bullet lenses and silk screen washers (As shown). Tails can have lenses fitted or be left bare, lenses give a larger light and most people use this option when fitting the kit. Drill size needed for lenses option is 3mm without lenses 1mm.

Small Fibre optic star lighting tail specifications:

  • 20 tails x 0.75mm diameter,
    1.25m length
  • 8 x 1.00mm dia., 1.25m length
  • 20 x 0.75mm dia., 1.5m length
  • 8 x 1.00mm dia., 1.5m length
  • 20 x 0.75mm dia., 1.75m length
  • 8 x 1.00mm dia., 1.75m length
  • 20 x 0.75mm dia., 2.0m length
  • 8 x 1.00mm dia., 2.0m length

next day carrier

Choose your wheel by ticking the appropriate box below. For twinkling star effect go for blue and white

small Red, orange, green, purple and white 5 colour changing wheel2 colour twinkle wheelblack to white twinkle wheel for an on off effect

Regular Colour Wheel
Blue & White Twinkle Wheel
Black & White Wheel



Contents of the small fibre optic lighting star ceiling kit below

Halogen light box with single power cable

35w tungsten halogen light source.
Dimensions: (L)181mm x (W)105mm x (H)100mm.

Star kit strands with protective covers on

112 tails: Picture shows harness with protective covers (Covers to be removed).

Clear bullet lenses used to diffuse and spread the light

112 Star Bullet Lenses.
Size of drill bit required for bullet fitting: 3mm. For bare tails a 1mm drill bit is required.



Electrical Requirements: 1 standard household socket.

Harness is made up of mixed diameter fibre - 0.75mm & 1mm - to give the star points a near & far effect.

varied size starlights for a near and far look



Medium fibre optic lighting star ceiling kit

Medium Fibre optic star light ceiling kit contents

50w tungsten halogen light source with separate feed on colour wheel for static colour or continuous colour change (181mm long, 100mm high, 105mm wide) with colour wheel/ twinkle wheel feeding 168 tail harness with a mix of 0.75mm and 1.0mm diameter polymer optic tails, lengths 56 at 2m, 2.5m and 3.0m. Customised colour wheels available. Kit comes complete with acrylic bullet lenses and silk screen washers (As shown). Tails can have lenses fitted or be left bare, lenses give a larger light and most people use this option when fitting the kit. Drill size needed for lenses option is 3mm without lenses 1mm.

Fibre optic tail specifications:

  • 28 x 0.75mm dia., 2.0m length
  • 28 x 1.00mm dia., 2.0m length
  • 28 x 0.75mm dia., 2.5m length
  • 28 x 1.00mm dia., 2.5m length
  • 28 x 0.75mm dia., 3.0m length
  • 28 x 1.00mm dia., 3.0m length

next day carrier

Choose your wheel by ticking the appropriate box below.

5 segment colour change diskBlue light twinkle wheelbalck and white colour wheel for on off effect

Regular Colour Wheel
Blue & White Twinkle Wheel
Black & White Wheel



Contents of the medium fibre optic lighting star kit below

2 plugs dedicated for lightsource and wheel

50w tungsten halogen light source. with 2 plugs, one for the lamp and one to switch the colour wheel on or off.
Dimensions: (L)286mm x (W)155mm x (H)119mm.

harness

168 tails: Picture shows harness with protective covers (Covers to be removed).

bullet lenses used to soften the light from the tails

168 Star Bullet Lenses. Size of drill bit required for bullet fitting: 3mm. For bare tails a 1mm drill bit is required.




Electrical Requirements: 2 standard household sockets - one to power the light source. and one to switch the colour wheel on or off.

Harness is made up of mixed diameter fibre - 0.75mm & 1mm - to give the star points a near & far effect .

medium star ceiling kit with varied diameter strands

Picture above is just one example of a fibre optic lights Star ceiling kits.



Star bullet ends

Jackson's believe these are the best prices you will find on these items, if you find them any cheaper let us know, we will attempt to match or beat any competitors prices, remember we are always available on the phone for advice and after sales support.


Fibre optic Star Kits are sent on a 24 hour service



More Examples of Fibre Optic star kits

Create a starry night in your bedroom, bathroom or any room in the house by using our fibre optic star ceiling kit on your ceiling. This fibre optic star kit allows you to do just that.

Consisting of mixed diameter fibre for a 'near + far' effect, each fibre optic star light kit comes with small acrylic fittings for a neat finish in the ceiling or chosen material. Unlike other systems on the market, these fittings allow for the tails to pass all the way through, maintaining the preferred intense star effect achieved when the fibre end is exposed while covering up any ragged edges from the drill hole. Alternatively drill 1mm holes in the ceiling and just use the tails on their own for an intense point of light.

These fibre optic star lights ceiling kits are typically installed in: Ceilings (access required from above or if new ceiling to be installed, fibres can be installed in a section of MDF or plasterboard prior to it being elevated and fixed in place), Drapes (pierce material and apply silicone to the back), Tiling (tails can be installed in grout between tiles).

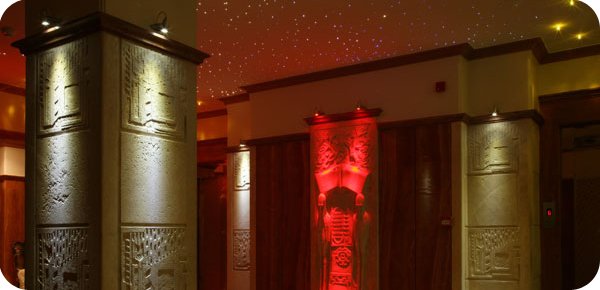

star kit in a cafe or coffee shop
starlight cluster in kids bedroom ceiling

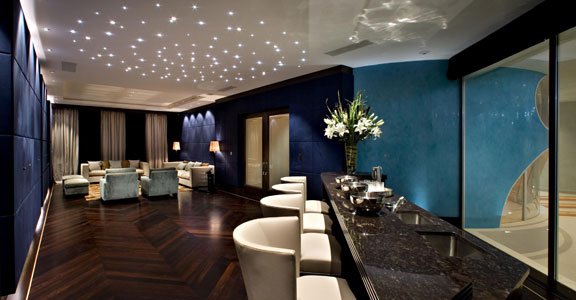

multiple star kits routed in ceiling of a large function room
pool room lighting

Picture above is just one example of a fibre optic Star light ceiling kits.
