Fibre optic lights decking flooring and paver kits UKFibre optic light decking floor and paver kits come as a large, medium or small. The light source in all kits contains a 4 colour wheel with a separate feed for single colour allowing you to change the mood and ambience of your garden at the flick of a switch. Star Deck Kits

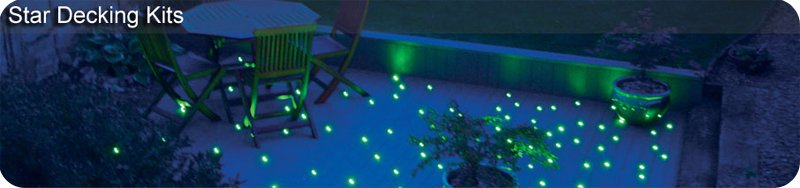

These amazing star deck lighting kits comprise of inconspicuous miniature acrylic heads that are almost invisible when not in use. Come the evening you can switch on these deck lighting kits and watch heads turn.These deck
lighting kits are also ideal for creating magical effects in the floor of
children's bedrooms or play areas. The effect from these deck lighting kits is
truly stunning, especially when used with a twinkle effect.
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Fibre optic star deck kits | |
 |
 |
| Examples of fibre optic decking kits | |
 |
 |
| Small Star Deck Kit | |
The small kit comprises:100W tungsten halogen lightsource with 2
plugs. One powers the lamp whilst the other switches the colourwheel on or off. Electrical Requirements: 2 x 240V household electrical supplies. Cutout sizes: 40mm cutout required for all fitting options. Please choose you desired fitting type from the options below. |
|
|
Standard small kit with 55 tails & lenses
For more information call 0151 334 0222 |

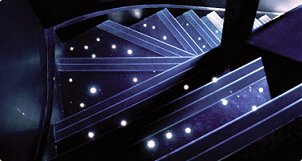

Picture above is just one example of a fibre optic star deck kit. |
|
Small Star Deck Kit Contents |
||||
 35W tungsten halogen lightsource with 1 plug. This lightsource outputs colour changing light continuously. The colourwheel can be removed by the end user to allow static white light output. |
This kit is also supplied with a weatherproof enclosure to
allow the light source to be sited outdoors, typically under decking. |
 Fibre optic harness with 55 tails. Lengths vary between 1.0 metres and 3.0 metres. |
 A four segment colourwheel is supplied. This is pre-installed in the lightsource and rotates continuously or it can be removed to give static white light output. |
 55 flush fitting acrylic lenses are supplied. |
| Small Star Deck Kit + 55 | |
The small deck kit +55 comprises:1 x 35W tungsten halogen light source which must be kept in a waterproof location or housed in the supplied IP enclosure (This item now comes with waterproof enclosure). Light source requires
1 x 240V supply and comes fitted with a household plug. |
|
|
Small + 55 Star deck kit (110 Tails & lenses total)
For more information call 0151 334 0222 |

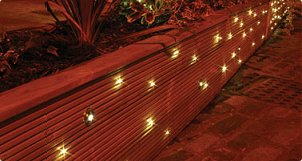

Picture above is just one example of a fibre optic star deck kit. |
|
Small Star Deck Kit + 55 Contents |
||||
 35W tungsten halogen lightsource with 1 plug. This lightsource outputs colour changing light continuously. The colourwheel can be removed by the end user to allow static white light output. |
This kit is also supplied with a weatherproof enclosure to
allow the light source to be sited outdoors, typically under decking. |
Fibre optic harness with 110 tails. Lengths vary between 1.0 metres and 3.0 metres. |
A four segment colourwheel is supplied. This is pre-installed in the lightsource and rotates continuously or it can be removed to give static white light output. |
110 flush fitting acrylic lenses are supplied. |
| Large Star Deck Kit | |
The small kit comprises:Large fibre optic decking kit. Supplied with higher output 75W lightsource, weatherproof enclosure, 110 acrylic end fittings and 110 fibre optic tails with lengths ranging from 1.0 metres to 5.0 metres. Electrical Requirements: 2 x 240V household
electrical supplies. |
|
|
Large Star deck kit with 110 Tails & lenses
For more information call 0151 334 0222 |

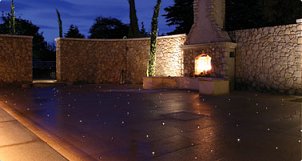

Picture above is just one example of a fibre optic star deck kit. |
|
Large Star Deck Kit Contents |
||||
|
75W tungsten halogen lightsource with 2 plugs. One powers the lamp whilst the other switches the colourwheel on or off. |
This kit is also supplied with a weatherproof enclosure to
allow the light source to be sited outdoors, typically under decking. |
Fibre optic harness with 110 tails. Lengths vary between 1.0 metres and 5.0 metres. |
 A six segment colourwheel is supplied. This is pre-installed in the lightsource and can be left to rotate continuously or can be stopped on any colour to give static light output. |
110 flush fitting acrylic lenses are supplied. |
| Large Star Deck Kit + 110 | |
The small kit comprises:Extra Large fibre optic decking kit. Supplied with higher output 75W lightsource, weatherproof enclosure, 220 acrylic end fittings and 220 fibre optic tails with lengths ranging from 1.0 metres to 5.0 metres. Electrical Requirements: 2 x 240V household
electrical supplies. |
|
|
Large + 110 Star deck kit (220 Tails and lenses total)
For more information call 0151 334 0222 |
Picture above is just one example of a fibre optic star deck kit. |
|
Large Star Deck Kit + 110 Contents |
||||
|
75W tungsten halogen lightsource with 2 plugs. One powers the lamp whilst the other switches the colourwheel on or off. |
This kit is also supplied with a weatherproof enclosure to
allow the light source to be sited outdoors, typically under decking. |
Fibre optic harness with 220 tails. Lengths vary between 1.0 metres and 5.0 metres. |
A six segment colourwheel is supplied. This is pre-installed in the lightsource and can be left to rotate continuously or can be stopped on any colour to give static light output. |
220 flush fitting acrylic lenses are supplied. |
