ALTERNATIVE POOL DEPTH

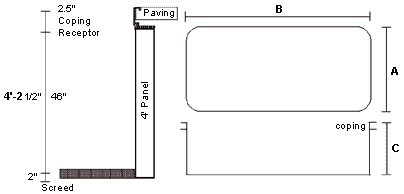

EXCAVATION:- DIG DIMENSIONS STANDARD POOL DEPTH

|
pool
size |
A |
B |
C |
| 12' x 20' |
12' |
20' |
4'21/2" |
|
12' x
24' |
12' |
24' |
4'21/2" |
| 12' x
28' |
12' |
28' |
4'21/2" |
|
14' x
30' |
14' |
30' |
4'21/2" |

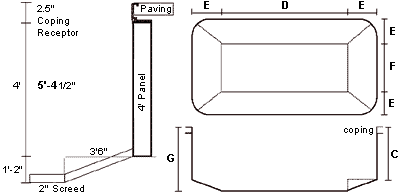

ALTERNATIVE 5' POOL DEPTH
An optional 5' pool depth is also available at no extra cost. The same liner that is used for a 4' depth pool can also be used for a 5' depth pool. The liner material is expandable and will stretch into position as long as the excavation is carried out to the dimensions specified below.

|
pool
size |
C |
D |
E |
F |
G |
| 12' x 20' |
4'21/2" |
14 |
3'6" |
5' |
5'41/2" |
|
12' x
24' |
4'21/2" |
18 |
3'6" |
5' |
5'41/2" |
| 12' x
28' |
4'21/2" |
22' |
3'6" |
5' |
5'41/2" |
|
14' x
30' |
4'21/2" |
24 |
3'6" |
7' |
5'41/2" |
Note: Please make sure your dealer is aware of your intentions to increase the depth of the pool as this may alter plumbing configuration and heater sizing that is required for your
pool.
