Large and Extra Large Fibre Optic Lighting Star Ceiling Kits UK

**We have a new improved page and site for our fibre optic kits just click here **

Like its little brother the small fibre optic lights star ceiling lighting kit, the large fibre optic star kit is ideal for dramatically lighting larger areas using fibre optic ends of different diameters to produce a "near and far" effect. Hallways, bedrooms, bathrooms, showers, saunas, mirrors, bed boards, floors and fabrics are all ideal locations for this fibre optics light kit.

Is it easy to install and do I need an electrician? click here, If I want a star night sky effect what's the best plan?

Many people want their fibre optic star ceiling kit to look as as close to the night sky as possible. To do this the recommended colour wheel to go for is the blue and white wheel, this gives a true twinkling star effect unlike the black and white wheel which causes the light to go on and off. Also the star ceiling kits include bullet end lenses which can go on the ends of the tails, these lenses mean the end is a bigger light, for the star effect we recommend that you mix the ends that pop through the ceiling, that is some will have lenses some won't ideally a ratio of around 10 small to 1 large, you can change this of course but what you're looking to achieve is a fibre optic star effect ceiling with larger planets dotted around, also the fibre optic tails are various sizes creating a near and far feel.

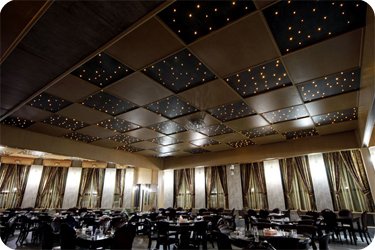

Large Fibre Optic Light Star Ceiling Kit in restaurant setting

Large Fibre Optic Light Star Ceiling Kit



Large fibre optic light ceiling kit

Large fibre optic star ceiling kit

75w tungsten fibre optic halogen light source (285mm long, 100mm high, 152mm) with separate feed on colour wheel feeding 224 tail harness with a mix of 0.75mm and 1.0mm diameter polymer fibre optic tails. Kit comes complete with acrylic bullet lenses and silk screen washers (cad drawings pictured below). Customised colour wheels available. Light source requires 2 x 240v supplies, 1 for lamp and 1 for colour wheel control. Fibre optic star kit comes fitted with 2 x household plugs. Tails can have lenses fitted or be left bare, lenses give a larger light and most people use this option when fitting the kit. Drill size needed for lenses option is 3mm without lenses 1mm.

Fibre optic tail specifications for large kit:

  • 0.75mm diameter in groups of 20 tails of the following lengths: 1.0m, 1.5m, 2.0m, 2.5m, 3.0m, 3.5m, 4.0m, 4.5m

  • 1.00mm diameter in groups of 8 tails of the following lengths: 1.0m, 1.5m, 2.0m, 2.5m, 3.0m, 3.5m, 4.0m, 4.5m


Fibre optic star kits are sent on a next day carrier

Choose your wheel by ticking the appropriate box below.

5 segment colour wheelblue and white spin wheel black and white twinkle wheel



Contents of the large fibre optic star ceiling lights kit below:

light source with2 plugs for colour wheel and light source
harnes with protective covers star softening bullet lenses

75w tungsten halogen light source with 2 plugs, one for the lamp and one to switch the colour wheel on or off.

Dimensions: (L)286mm x (W)155mm x (H)119mm.

224 tails: Picture shows harness with protective covers (Covers to be removed). 224 Star Bullet Lenses
Size of drill bit required for bullet fitting: 3mm. For bare tails a 1mm drill bit is required.


Electrical Requirements: 2 standard household sockets - one to power the lights source and one to switch the colour wheel on or off, this can be changed to wall switches (electrician needed)


Harness is made up of mixed diameter fibre - 0.75mm & 1mm - to give the star lights points a near & far effect .

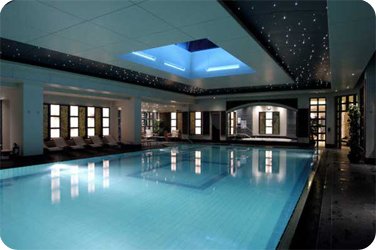

Varied diameter bulets can be used for a near and far effect giving and effect of depth of a starry sky, as seen in this swimming pool setting

Picture above is just one example of a fibre optic Star ceiling lights Kit



Extra Large fibre optic light star ceiling kit

Extra Large fibre optic star lights ceiling kit

75w tungsten halogen light source (285mm long, 100mm high, 152mm) with separate feed on colour wheel feeding 336 tail harness with a mix of 0.75mm and 1.0mm diameter polymer optic tails. Kit comes complete with acrylic bullet lenses and silk screen washers (cad drawings pictured below). Customised colour wheels available. Light source requires 2 x 240v supplies, 1 for lamp and 1 for colour wheel control. Fibre optic star kit comes fitted with 2 x household plugs. Tails can have lenses fitted or be left bare, lenses give a larger light and most people use this option when fitting the kit. Drill size needed for lenses option is 3mm without lenses 1mm.

Fibre optic tail specifications for extra large kit:

  • 20 x 0.75mm diameter tails from lengths: 2.0m, 2,5m, 3.0, 3.5m, 4.0m, 4.5m, 5.0m, 5.5m, 6m, 6,5m, 7.0m, 7.5m.

  • 8x 1.00mm diameter tails from lengths: 2.0m, 2,5m, 3.0, 3.5m, 4.0m, 4.5m, 5.0m, 5.5m, 6m, 6,5m, 7.0m, 7.5m.


next day carrier

Choose your wheel by ticking the appropriate box below.

colour change wheel2 colour twinkle wheelon and off effect twinkle wheel



Extra large fibre optic light star ceiling kit

lightsource with separate power cables for light and wheel harnes with sleeves on tails light diffusing bullet lens

75w tungsten halogen light source with 2 plugs, one for the lamp and one to switch the colour wheel on or off.

Dimensions: (L)286mm x (W)155mm x (H)119mm.

336 tails: Picture shows harness with protective covers (Covers to be removed). 336 Star Bullet Lenses
Size of drill bit required for bullet fitting: 3mm. For bare tails a 1mm drill bit is required.

Electrical Requirements: 2 standard household sockets - one to power the light source and one to switch the colour wheel on or off, this can be changed to wall switches (electrician needed)
Harness is made up of mixed diameter fibre - 0.75mm & 1mm - to give the star points a near & far effect.

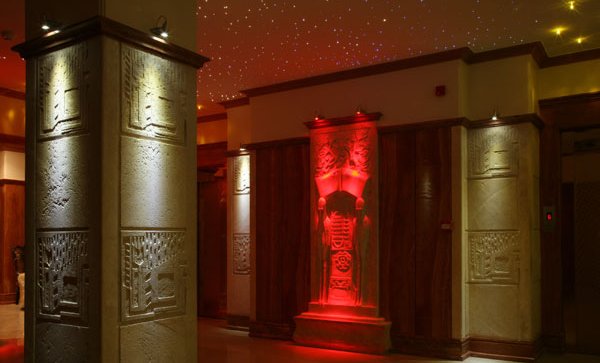

Near and far star effect in museum ceiling using fibre optics

Picture above is just one example of a large Fibre Optic Star ceiling lights kit, this may involve multiple kits on larger projects.

Fibre optic star kit bullet ends

Star Bullet Ends

Jacksons believe these are the best prices you will find on these large fibre optic star ceing kits, if you find them any cheaper let us know, we will attempt to match or beat any competitors prices, remember we are always available on the phone for advice and after sales support. 0151 334 0222

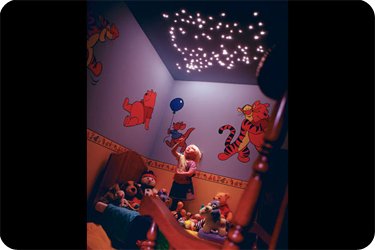

small childrens bedroom with cluster of lights in ceilingcafe
