Mega Pump
Swimming Pool Pumps UK
Mega Swimming Pool Pumps are quality
pumps that offer great value for money. Mega Pumps start at .20hp through to 3hp.
Mega Pumps are self priming swimming pool
pumps with built in thermal protection and come with 1 years warranty.
|
CODE |
HP OUTPUT |
LENGTH mm |
WIDTH mm |
HEIGHT mm |
WEIGHT kg |
PORT SIZE |
|
BOS0950094 |
0.20 |
430 |
155 |
278 |
6.2 |
2" |
|
BOS0950095 |
0.33 |
430 |
155 |
278 |
6.5 |
2" |
|
BOS0950096 |
0.50 |
485 |
155 |
278 |
8.03 |
2" |
|
BOS0950097 |
0.75 |
485 |
155 |
278 |
9.01 |
2" |
|
BOS0950098 |
1 |
485 |
155 |
278 |
9.09 |
2" |
|
BOS0950091 |
1.5 |
485 |
155 |
278 |
12 |
2" |
|
BOS0950092 |
2 |
485 |
155 |
278 |
15 |
2" |
|
BOS0950093 |
3 |
485 |
155 |
278 |
20 |
2" |
Swimming pool Mega Pumps are designed
for most domestic swimming pool filtration applications. Mega Pumps are high performance
swimming pool pumps which are manufactured from a high grade
UV stabilised reinforced thermoplastic, coupled to a corrosion resistant marine
grade aluminium motor housing and incorporates as standard a heavy duty cast
iron end-shield for quieter running and longer bearing life.
Mega swimming pool pumps weighing between 6kg and 20kg they are lightweight
but exceptionally strong and durable. Mega Swimming Pool Pumps make ideal
replacement pumps for you current swimming pool or new build swimming pools.
There are 3 ranges of Mega swimming pool pumps, the SS, SC and SB
range. All models are quiet running and are low in
energy consumption. The smaller SS range are designed for medium sized domestic
swimming pools. The SC series are centrifugal pumps as are the the larger SB
series that are designed for larger pools.
Mega swimming pool Pumps come and imperial fittings (2”) that can be glued into your existing Pipework. To make them even better value for money Mega Swimming Pool Pumps are
self-priming.
 | All pumps come with a 1 year warranty. |
SS Series Swimming Pool Pumps
This swimming pool pump is designed for medium sized domestic swimming pools.
Low energy consumption, quiet running.
|
Product Code
|
Description
|
Price
|
| BOS0920845 |
MP SS Series
Pump 0.15kw
|
|
|
BOS0920849 |
MP SS Series Pump 0.25kw
|
|
| BOS0920850 |
MP SS Series
Pump 0.37kw
|
|
|
BOS0920851 |
MP SS Series Pump 0.56kw
|
|
| BOS0920864 |
MP SS Series
Pump 0.75kw
|
|
SS
Series Swimming Pool Pump Specifications:
Part #
UK3 Pin |
Part # DIN |
Type |
Input Power KW |
Output Power KW |
Output Power HP |
Capacity m3/h |
Total Head MWC |
A mm |
B mm |
C mm |
| 0920845 |
0950094 |
SS020 |
0,28 |
0.15 |
0,2 |
2-7 |
4,5-3 |
507 |
211 |
340 |
| 0920849 |
0950095 |
SS033 |
0,43 |
0.25 |
0,33 |
2-9 |
5-3 |
507 |
211 |
340 |
| 092850 |
0950099 |
SS050 |
0,55 |
0.37 |
0,5 |
2-3-13 |
8,5-8-3 |
552 |
211 |
340 |
| 0920851 |
0950089 |
SS075 |
0,75 |
0.56 |
0,75 |
2-8,5-15 |
10,5-8-3 |
552 |
211 |
340 |
| 0920864 |
0920863 |
SS100 |
0,97 |
0.75 |
1 |
2-10-17 |
11-8-3 |
552 |
211 |
340 |
 |
Motor KW - 0,15-0,75
Max Pressure Hm - 4,4-10,2
Max Capacity m3/h - 9-15
Connections - 50mm
Pre filter - Yes
Voltage - 230V
Salt Water resistant - Only salt electrolysis
Variable flow/speed - No |

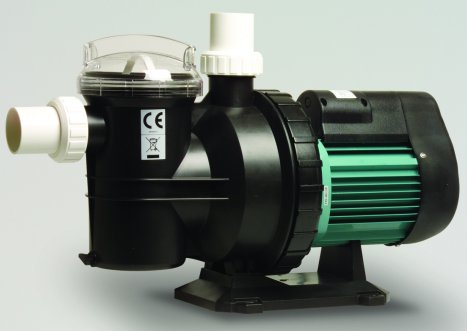

SC Series Swimming Pool Pumps
This swimming pool pump is designed for medium sized domestic swimming pools.
Low energy consumption, quiet running.
|
Product Code |
Description |
Price |
| BOS0920845 |
MP SC Series
Pump 0.37kw |
|
|
BOS0920846 |
MP SC Series Pump 0.56kw |
|
| BOS0920847 |
MP SC Series
Pump 0.75kw |
|
Part #
UK3 Pin |
Part # DIN |
Type |
Input Power KW |
Output Power KW |
Output Power HP |
Capacity m3/h |
Total Head MWC |
A mm |
B mm |
C mm |
| 0920845 |
0950096 |
SC50 |
0,51 |
0.37 |
0,5 |
3-13 |
6,5-3 |
600 |
240 |
370 |
| 0920846 |
0950097 |
SC75 |
0,75 |
0.56 |
0,75 |
4-9-17 |
9-8-3 |
600 |
240 |
370 |
| 0920847 |
0950098 |
SC100 |
0,97 |
0.75 |
1 |
4-10,5-18 |
11,5-8-5 |
600 |
240 |
370 |
 |
Motor KW - 0,5-1
Max Pressure Hm - 6,1-11
Max Capacity m3/h - 12-18
Connections - 50mm
Pre filter - Yes
Voltage - 230V
Salt Water resistant - Only salt electrolysis
Variable flow/speed - No |
SB Series Swimming Pool Pumps
This swimming pool pump is designed for medium sized domestic
swimming pools. Low energy consumption, quiet running. Ring Lock Seal design to
eliminate suction leaks and to maximize suction efficiency.
|
Product Code |
Description |
Price |
| BOS0920841 |
MP SB Series
Pump 0.75kw |
|
|
BOS0920842 |
MP SB Series Pump 1.1kw |
|
| BOS0920843 |
MP SB Series
Pump 1.5kw |
|
|
BOS0920844 |
MP SB Series Pump 2.2kw |
|
| BOS0950087 |
MP SB Series
Pump 1.5kw |
|
|
BOS0950088 |
MP SB Series Pump 2.2kw |
|
Part #
UK3 Pin |
Part # DIN |
Input Power KW |
Output Power KW |
Output Power HP |
Capacity m3/h |
Total Head MWC |
A mm |
B mm |
C mm |
| 0920841 |
0950090 |
0,97 |
0.75 |
1 |
4-14 |
13-8 |
717 |
275 |
413 |
| 0920842 |
0950091 |
1,3 |
1.1 |
1,5 |
4-22 |
16-8 |
717 |
275 |
413 |
| 0920843 |
0950092 |
1,8 |
1.5 |
2 |
4-28 |
17-8 |
717 |
275 |
413 |
| 0920844 |
0950093 |
2,18 |
2.2 |
3 |
4-29 |
19-10 |
717 |
275 |
413 |
 |
Motor KW - 0,75
Max Pressure Hm - 12,4-19,1
Max Capacity m3/h - 18-30
Connections - 63mm
Pre filter - Yes
Voltage - 230/400V
Salt Water resistant - Only salt electrolysis
Variable flow/speed - No |
|
