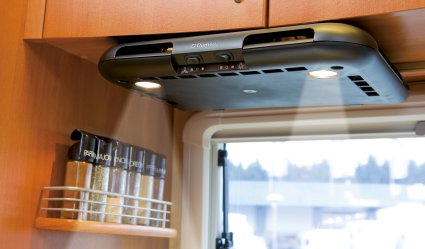

The 1st air circulating cooker hood in the caravan industry.

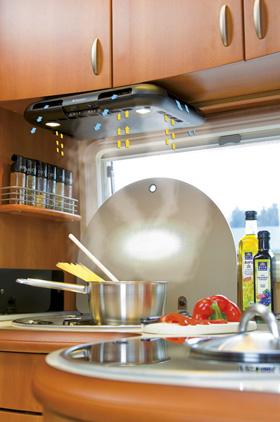

With 50 m³/h capacity CIRCULAIR performs more efficient than conventional cooker hoods – while offering a low DC-consumption of only 5 W. A roof-mounted ventilator is no longer necessary as the cleaned air is returned downwards while the suction is concentrated along the edges. This creates an air-dome which stops fumes escaping.
Lateral air suction ensures efficient performance with
38 or 45 m³/h at selectable
speed 1 or 2
Easy installation as no roof-mounted ventilator is necessary
With 2 fan-speed regulation and integrated halogen lights
Washable grease filter and exchangeable carbon filter

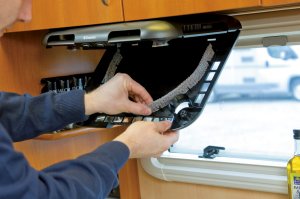

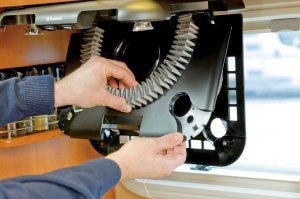

Snap-on-releases for easy access to filters and lamps
The Dometic CK2000 has Exchangeable activated carbon filter
& Washable metal grease filter.
Technical Data
Availability
Aftermarket
Width (mm)
400
Height (mm)
55
Depth (mm)
280
Weight (kg)
2.2
Speeds (Adjustable Ventilation)
2
Power input (depending on speed) (W)
5 - 25
Suction volume (m³/h)
45
Noise level (1m) (dB)
50
Lamps (V)
12
Halogen lamps
2x10W
Dometic

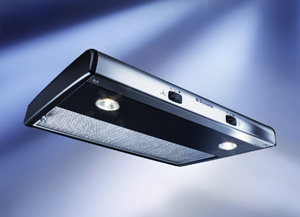

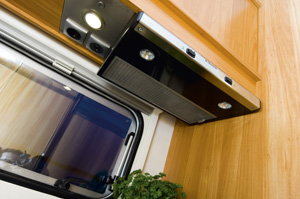

CK400 Exhaust Cooker Hood Extractor
2 speed fan featuring a 12 V motor integrated in the roof dome makes it easy to avoid condensation, exhaust fumes and heat built-up. Connected to the exterior via a flexible duct and weather-proof cap for mounting on the roof of the caravan.
The Dometic exhaust cooker hoods quickly draw cooking fumes, odours &
moisture out of the vehicle. The compact fan, equipped with a 12 volt motor, is
integrated into the roof dome and not into the unit itself. This design
optimises airflow and performance.
Detachable and washable filter 2 built-in halogen lights
The 1st air circulating cooker hood in the caravan industry.
With 50 m³/h capacity CIRCULAIR performs more efficient than conventional cooker hoods – while offering a low DC-consumption of only 5 W. A roof-mounted ventilator is no longer necessary as the cleaned air is returned downwards while the suction is concentrated along the edges. This creates an air-dome which stops fumes escaping.
2 speed fan featuring a 12 V motor integrated in the roof dome makes it easy to avoid condensation, exhaust fumes and heat built-up. Connected to the exterior via a flexible duct and weather-proof cap for mounting on the roof of the caravan.
