Zig Electrical Components
|
Zig CF8 Charging System |
|
|
Charging and Distribution System for Caravans, all
Recreational Vehicles and Boats. Features: Automatic charging control, Mains
battery charging up to 12 Amps, Charging from vehicle or boat generator,
Mains to 12V conversion - up to 4.5 Amps continuous, Switched selection of
source, car/boat or auxiliary battery, Multiple safety protection devices.
Designed for use with 60Ah or greater leisure battery or batteries
permanently in circuit. Full fitting and usage instructions supplied. Screw
terminal connections at rear. Dimensions: Panel 205 x 160mm, Case 185 x 120
x 90 deep approx. Suitable trip box available in the Electrical System
category. |
|
Zig CF9 Charging System
Charging and Distribution System for
Caravans, all Recreational Vehicles and Boats, with 230V and 12V outputs for
refrigerator. Features: Automatic charging control, Mains battery charging
up to 12 Amps, Charging from vehicle or boat generator, Mains to 12V
conversion - up to 4.5 Amps continuous, Switched selection of source,
car/boat or auxiliary battery, Multiple safety protection devices. Designed
for use with 60Ah or greater leisure battery or batteries permanently in
circuit. Full fitting and usage instructions supplied. Screw terminal
connections at rear. Dimensions: Panel 293 x 105mm, Case 275 x 75 x 150 deep
approx. Suitable trip box available in the Electrical System category.
Please Note: It is strongly recommended that the refrigerator is wired to
operate only while the engine is running. The use of a relay such as Zig
RM12 is recommended. |
|
|
|
Zig CP400 Control Panel
Three way switched and fused 12v distribution panel, including battery
condition monitor and power source selector switch. These panels are
designed to be installed remotely from all Zig power supplies. Width Height
Depth 215 80 50. |
|
|
|

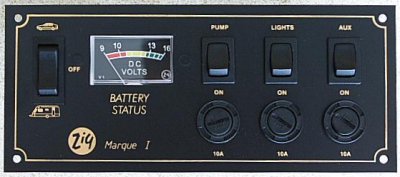

Zig Mk1 12V Control Panel
Versatile Control Panel. Features:
Car/Auxiliary battery selector switch, Battery condition gauge, Switched and
fused outlets (10A) for pump, lights and auxiliary. Connections are standard
1/4" spade terminals. Information leaflet supplied. Panel dimensions 175 x
75mm approx. |
|
|
|
Zig CPX-7 Dual Battery
Meter |
|
|
Car/Auxiliary Battery Voltage Meter.
Instructions supplied. Screw terminal connections. Panel 82 x 70mm approx.
|
|
Zig CPX-7 Dual Battery
Meter |
|
|
Leisure Battery Voltage Meter. Instructions
supplied. Screw terminal connections. Panel 82 x 70mm approx.
|
|
Zig Water Level Gauge |
|
|
Adjustable Water Level Gauge for all Tanks.
Simple to install - drill 2 holes for probes, cut probes to length (450mm as
supplied), insert into holes - use sealant if necessary, fit gauge and
extend wires. Full instructions supplied. Gauge face 80 x 70mm approx.
|
|
Zig X-70 Battery Charger |
|
|
Zig X-70 Battery Charger 13.8V / 12.5A. A
lightweight, compact battery charger and power supply with a stabilised
output for maximum efficiency and control. Output voltage 13.8v, current
limit 12.5A. Dimensions (L) 180mm x (W) 115mm x (H) 75mm.
|
|
Zig X-80
Battery Charger |
|
|
Zig X-70 Battery Charger 13.8V / 12.5A. A
lightweight, compact battery charger and power supply with a stabilised
output for maximum efficiency and control. Output voltage 13.8v, current
limit 12.5A. Dimensions (L) 180mm x (W) 115mm x (H) 75mm.
|
|
Zig RM14 Relay |
Zig F32 Fuse
holder |
|
Relay for Split
Charging or Control of Refrigerator. This will allow current to be drawn
only when the vehicle engine is running, thus avoiding unnecessary current
drain from the engine battery. 10-16V operation, continuous current rating
30A.
|
Spare Bayonet
Fuseholder. (Fuse not supplied).
|
|
