Competition Swimming Pool Starting Blocks

Welcome to our range of Swimming Pool Starting Blocks for competition swimming pools.


Astral Swimming Pool Starting Blocks



BCN03 Starting Blocks For Competition Swimming Pools

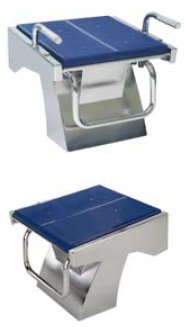

Astral BCN03 Swimming Pool Starting Blocks

The BCN03 Starting block for competition swimming pools was developed and patented for the FINA Swimming World Championships held in Barcelona in 2003, and introduces two innovations:

  • Allows the swimmer to adjust the angle of the block* manually. They can choose the angle most suitable from the available 0º, 3º, 6º and 10º.
    * The regulations of the International Swimming Federation (FINA) (FR2.7) allow an angle between 0 and 10º on the starting block. So far, all the starting blocks available in the market have consisted of a fixed platform.
  • Side Grip Bars

The BCN03 starting block is manufactured using AISI-316 Stainless Steel. The standard starting platform can be dismantled to enable assembly of the Omega electronic timing system. It can also be adapted to other timing systems under request. The platform is 550 mm long x 500 mm wide, with a polished finish, and 437 mm high. Ideal for installation in a swimming pool with side walls. Anchoring system for concrete is also included.

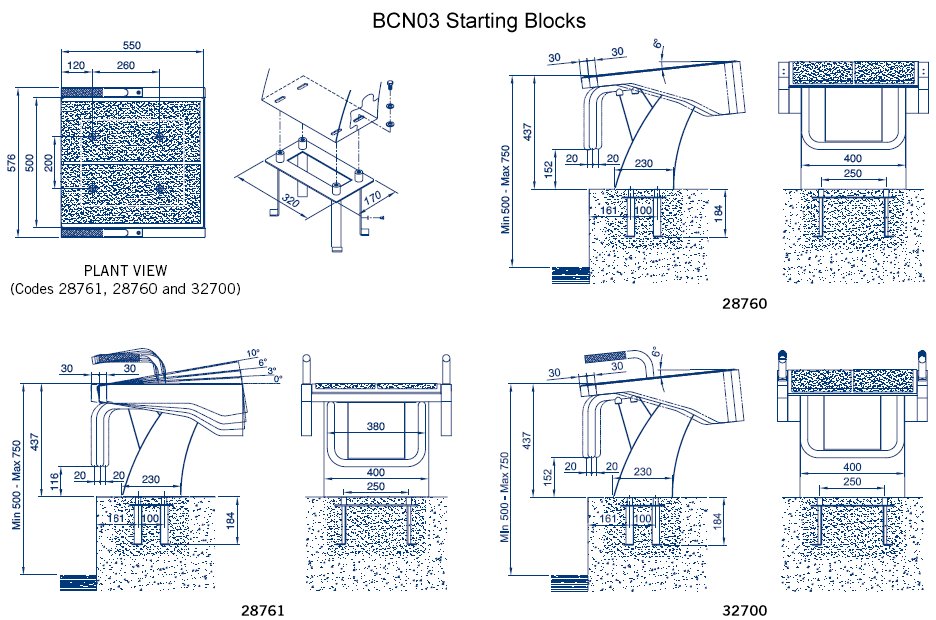

Click Here For Dimensions

Please Note: The Eco Versions are not adjustable and are fixed at 6°

Item Details
Item Code
Price
BCN03 Starting Block - Manual adjustment and fixed side handles
AST28761
BCN03 Starting Block - Eco podium without side handles
AST28760
BCN03 Starting Block - Eco podium with side handles
AST32700

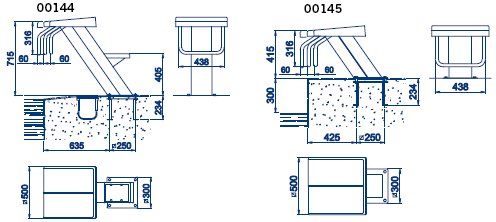

Starting Blocks For Competition Swimming Pools

The base is made from AISI-316 Stainless Steel. Adjustable platform in polyester & fibreglass with non-slip finish 500mm x 500mm. Number sequence not included. Anchoring fixtures included in the supply.

Item Details
Item Code
Price
Starting Block With Polished Finish - Height 700mm
AST00144
Starting Block With Polished Finish - Height 400mm
AST00145

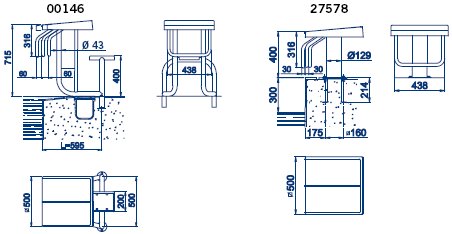

Starting Blocks For Competition Swimming Pools

Item Details
Item Code
Price
Starting Block With Polished Finish - Height 700mm
AST00146
Starting Block With Polished Finish - Height 400mm
AST27578
