Insulated
Inground Panel Swimming Pool
The Perfect
Lifestyle Choice A
pool has something
to offer everyone,
whether it is
for fitness or
recreation, socialising
or just plain
fun for the
children or
grandchildren. By adding
a pool toy
our home you
are creating a
focal point to
draw family and
friends together and
promoting a healthy
lifestyle for all.
As well as
being an investment
in the value
of your home,
pool ownership is
an investment in
the quality of
your life. Make
your home or
garden your dream
get away, relax
in your very
own pool with
all of your
home comforts close
at hand. Listen
to the water,
the laughter and
splashing and
experience the fun
that a pool
creates. Endless
Summer Heat wave
Welcome to the
Endless Summer Heat
wave pool. Its
unique system of
heat retaining panels
offers huge savings
in running costs
and its design
considerably reduces
the cost of
building.
The Endless Summer
Heat wave is
ideal for
installation by any
competent DIY-er or
pool builder and
comprises an
ingenious interlocking wall
panel system made
of polyurethane which
has excellent
insulation properties. The
pool’s design reduces
the size of
the excavation
required; saving valuable
time and money
on back filling.
Panels are
pre-plumbed with flow
fittings and the
pool comes with
a liner that
is available in
a choice of
patterns. It is
no exaggeration to
say that this
pool can be
installed within 7
to 20 days,
indoors or outdoors,
professionally or
self-build and for
domestic or
commercial use. It
really is that
easy!
There are two
models in the
Heat wave range–
the standard and
the deluxe. The
deluxe is the
ultimate in heat
retention offering
the highest U
values* of any
pool on the
market. The patented
thermal insulated
panels are designed
to trap heat
in the pool
and keep the
surrounding cold out.
By restricting the
loss of heat
through the walls,
the panels act
as a thermal
break–keeping more
heat in and
preventing the out
side ground
temperature extracting heat
from the pool
water, resulting in
dramatic energy
savings and sustained
warm water. *The
U value, or
over all heat
transfer co
efficient, describes how
well a building
element conducts
heat. It measures
the rate of
heat transfer through
a building element
over a given
area, under
standardized conditions.
 |
Wave
good bye to
costly heating
bills The enormous
advantage with
a Heatwave pool
is the huge
savings that
you will make
on running
costs when the
pool is
operational. This pool
has been
developed with a
unique system
of interlocking heat
retaining wall
panels guaranteeing
unbelievable energy
savings while
sustaining warm water
temperatures. Heat
wave versus a
traditionally built
pool In a
swimming pool,
heat is lost
from the
surface of the
water (which
can be minimised
by using a
solar cover or
a heat retention
cover), and from the
walls and floor. The construction methods and materials used for the walls
and floor of a pool will make a big difference in determining how much
heat is lost, and there fore how much the pool costs to heat. Incredibly,
the Heatwave Deluxe swimming pool can reduce heat loss through the walls
and floor by 90% compared to a conventional block and liner construction.
This amazing reduction in heat loss translates to substantial savings in
heating costs! Why choose any other method of pool construction? |
|
Pool section
& surrounding
conditions |
Conventional
construction (block
and liner) |
Heatwave
Standard thermal
panel |
Heatwave
Deluxe panel pool |
| Walls
- dry
conditions |
79
watts per
m2 per hour |
5 watts per m2 per hour |
3.6
watts per m2 per hour |
| Floor
- dry
conditions |
27
watts per
m2 per hour |
5
watts per m2 per hour |
5 watts per m2 per hour |
| Walls
- wet
conditions |
140
watts per
m2 per hour |
5 watts per m2 per hour |
3.6
watts per m2 per hour |
| Floor
- wet
conditions |
97 watts per
m2 per hour |
5
watts per m2 per hour |
5 watts per m2 per hour |
|
The Endless
Summer Heat wave
pool can be
built in a
choice of sizes
from 6.2m x
3.2m up to
12.2m x 6.2m.
The panels are
available either 1.2m
or 1.5m deep
and the pool
can have a
deep end and
step section if
desired.
Enjoy your
swimming pool in under 3 weeks!
 |
 |
Quick
and easy to
build Heatwave
can be installed
in around three
weeks by a
competent DIY-er
or a
professional pool
builder.
...the choice is
yours professional
or self build,
its up to
you! |
Heatwave
Standard
Systems
 |
Standard
System Delivering
energy savings
at an economical
and affordable
price. The thermal
panel used for
construction of
the Heat wave

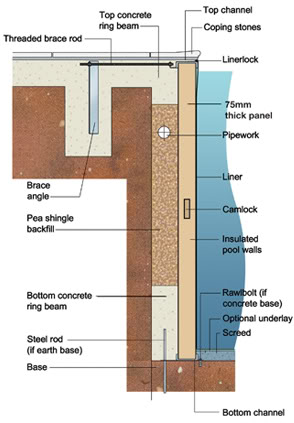

Standard pool
is 75mm thick. |
|
Features: |
•10
year guarantee
• 75 mm
of polyurethane
• U-value: 0.30
• HP 200
plastic panel
finish |
•
Camlock panels
• 200mm over
dig
• Factory fitted
flow fittings |
|
Pool Sizes |
6.2 x 3.2m (20' x 10') |
7.2 x 3.7m (24' x 12') |
8.7 x 4.2m (28' x 14') |
9.2 x 4.7m (30' x 15') |
9.7 x 5.2m (32' x 17') |
11.2 x 5.7m (37' x 19') |
12.2 x 6.2m (40' x 20') |
| 1.2m Deep
- Pool shell including flow fittings (Skimmer, main drain, vac point &
inlets) and pool liner. |
POA |
POA |
POA |
POA |
POA |
POA |
POA |
|
1.5m Deep - Pool shell including flow fittings (Skimmer,
main drain, vac point & inlets) and pool liner. |
POA |
POA |
POA |
POA |
POA |
POA |
POA |
|
Pool Sizes |
6.2 x 3.2m (20' x 10') |
7.2 x 3.7m (24' x 12') |
8.7 x 4.2m (28' x 14') |
9.2 x 4.7m (30' x 15') |
9.7 x 5.2m (32' x 17') |
11.2 x 5.7m (37' x 19') |
12.2 x 6.2m (40' x 20') |
| Square
Stair |
POA |
POA |
POA |
POA |
POA |
POA |
POA |
|
Roman End |
POA |
POA |
POA |
POA |
POA |
POA |
POA |
| Corner
Step |
POA |
POA |
POA |
POA |
POA |
POA |
POA |
Heatwave
Deluxe
Systems
 |
Deluxe
Systems Using
a 125mm thermal
panel, the Heat
wave Deluxe is
the most
advanced panel system
available today.
Running costs
coupled with easier
faster installation
methods mean
huge savings when
compared to
pools built using
other construction
methods. |
|
Features: |
• 25
year guarantee
• 125mm of
polyurethane
• U-value: 0.18
(high insulation
value)
•HP 200 plastic
panel finish |
•
Camlock panels
• 375mmoverdig
• Built in
liner lock
• Reinforced top
and bottom
channel
• Factory fitted
flow fittings |
|
Pool Sizes |
6.2 x 3.2m (20' x 10') |
7.2 x 3.7m (24' x 12') |
8.7 x 4.2m (28' x 14') |
9.2 x 4.7m (30' x 15') |
9.7 x 5.2m (32' x 17') |
11.2 x 5.7m (37' x 19') |
12.2 x 6.2m (40' x 20') |
| 1.2m Deep
- Pool shell including flow fittings (Skimmer, main drain, vac point &
inlets) and pool liner. |
POA |
POA |
POA |
POA |
POA |
POA |
POA |
|
1.5m Deep - Pool shell including flow fittings (Skimmer,
main drain, vac point & inlets) and pool liner. |
POA |
POA |
POA |
POA |
POA |
POA |
POA |
|
Pool Sizes |
6.2 x 3.2m (20' x 10') |
7.2 x 3.7m (24' x 12') |
8.7 x 4.2m (28' x 14') |
9.2 x 4.7m (30' x 15') |
9.7 x 5.2m (32' x 17') |
11.2 x 5.7m (37' x 19') |
12.2 x 6.2m (40' x 20') |
| Square
Stair |
POA |
POA |
POA |
POA |
POA |
POA |
POA |
|
Roman End |
POA |
POA |
POA |
POA |
POA |
POA |
POA |
| Corner
Step |
POA |
POA |
POA |
POA |
POA |
POA |
POA |
|
