Mini Floor Kits

Fibre optic Mini Floor lighting Kits UK

Our mini floor lighting kits are the perfect solution to floor level mood lighting, inside or out. These lightings are also unique in that the fittings stay cool and are safe to walk on, of course they also allow for a dazzling range of lighting effects.

Like the higher output paver kits, the mini floor light kit can be used for interior or exterior applications. The fittings are the same high quality glass and polished stainless steel, only slightly smaller in size which makes them ideal for applications where discretion is key.

This kit is recommended to create marker lights for stairs and hallways, decorative lighting for smaller rooms such as bathrooms and kitchens and atmospheric feature lighting.

Small Mini Fibre Optic Floor Light Kits
This Mini Floor kit comprises of: 75W tungsten halogen lightsource with 2 plugs. One powers the lamp whilst the other switches the colourwheel on or off. Dimensions: (L)286mm x (W)155mm x (H)119mm. Electrical Requirements: 2 x 240V household electrical supplies. Cutout sizes: 38mm cutout required for paver fittings.

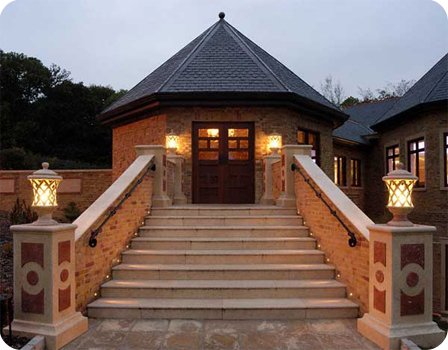

Small Mini Floor Kit Ł Small mini floor kit with 75W colour changing lightsource, 6 stainless steel paver fittings and 6 fibre optic tails. Tail lengths vary between 2.0 metres and 3.0 metres. For more information call 0151 334 0222	Picture above is just one example of a fibre optic mini floor kit.

Mini Fibre Optic Floor Light Kits
75W tungsten halogen lightsource with 2 plugs. One powers the lamp whilst the other switches the colourwheel on or off. Dimensions: (L)286mm x (W)155mm x (H)119mm.	Fibre optic harness with 6 tails. Lengths vary between 2.0 metres and 3.0 metres. 3 Tails @ 2.0m 3 Tails @ 3.0m	A six segment colourwheel is supplied. This is pre-installed in the lightsource and can be left to rotate continuously or can be stopped on any colour to give static light output.	Six 38mm diameter stainless steel round paver fittings are supplied.

Picture above is just one example of a fibre optic mini floor kit.

Large Mini Fibre Optic Floor Light Kits
This Mini Floor kit comprises of: 75W tungsten halogen lightsource with 2 plugs. One powers the lamp whilst the other switches the colourwheel on or off. Dimensions: (L)286mm x (W)155mm x (H)119mm. Electrical Requirements: 2 x 240V household electrical supplies. Cutout sizes: 28mm cutout required for paver fittings.

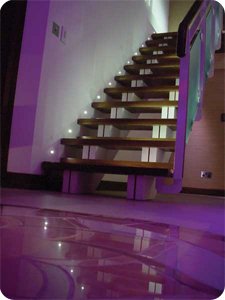

Large Mini Floor Kit Ł Large mini floor kit with 75W colour changing lightsource, 10 stainless steel paver fittings and 10 fibre optic tails. Tail lengths vary between 2.0 metres and 5.6 metres. For more information call 0151 334 0222	Picture above is just one example of a fibre optic mini floor kit.

Large Mini Fibre Optic Floor Light Kits
75W tungsten halogen lightsource with 2 plugs. One powers the lamp whilst the other switches the colourwheel on or off. Dimensions: (L)286mm x (W)155mm x (H)119mm.	Fibre optic harness with 10 tails. Lengths vary between 2.0 metres and 5.6 metres. 1 Tail @ 2.0m \| 1 Tail @ 2.4m 1 Tail @ 2.8m \| 1 Tail @ 3.2m 1 Tail @ 3.6m \| 1 Tail @ 4.0m 1 Tail @ 4.4m \| 1 Tail @ 4.8m 1 Tail @ 5.2m \| 1 Tail @ 5.6m	A six segment colourwheel is supplied. This is pre-installed in the lightsource and can be left to rotate continuously or can be stopped on any colour to give static light output.	Ten 38mm diameter stainless steel round paver fittings are supplied.
